Introduction
Soft Target Munition (STM MK-2)
• Equipped with Anti tamper and Pressure sensor • Timer settable up to 30 days • Ultra low power operation 6volt/100uA
.png)
Introduction
• Equipped with Anti tamper and Pressure sensor • Timer settable up to 30 days • Ultra low power operation 6volt/100uA
Introduction

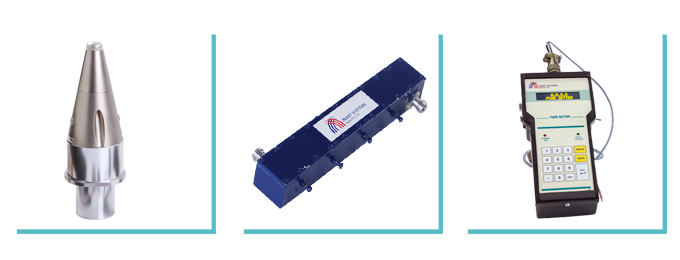

• Electronic Time fuze for PINAKA sub munitions type-II • Power Sources – Turbo generator • Time Range – 6.00 sec to 199.9 sec • Timing Accuracy - +5 msec / -5 msec • Easy to operate fuze setter with backlight for night use
Introduction
• Testing for Air Armament Fuzes • User friendly and simple in operation • Compatible with USB for data storage • Compact and portable structure
Introduction
• Health check and Data logging • Monitor & Test, fire commands for various Aircrafts • SU 30 MK1, Mirage 2000 and Jaguar
Introduction
BAND PASS FILTER (BPF) • Inter Digital Band pass filter used to eliminate the noise in the given signal. • BPF is designed with 10 intermediate rod and 2 Feed rods. • 50 MHz bandwidth.& Filter Freq in range 2240MHz to 2290MHz. SMPS (Power Supply) • Power : 400 Watt custom designed for Air force • Voltage Output: +3.3V, +5V, +12V, +5VSB,-5V,-12V. • Designed for raw burst and rough handling • SMPS for PSU of DVDR system of air force
Introduction
• By using MK II version of air driven power source we are carrying out the development of Mortar Fuzes. • Our aim is to replace the battery and ‘g’ switch in these fuzes for additional safety. • The technology is been demonstrated to TBRL Chandigarh.
Introduction

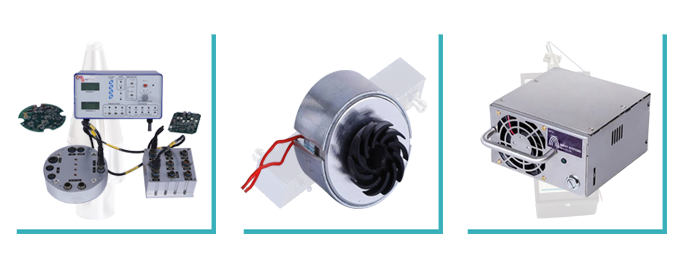

• Electric generator assembly housed within a projectile. • Provide current and voltage requirement to electronic circuit. • safe and reliable as compares to a battery or ‘g’ switch. • Small and compact. • Robust and lightweight design.
Introduction
• Product Under Development
